Products

dividing line

PP10HD – Compact Power Distribution Module

The PP10HD is a compact power distribution module with re‑settable poly fuses.

Re-settable fuses mean a minimum of down time when a fault occurs and no replacement costs.

Applications
  • Power distribution for electronic security & access peripherals
  • Fused over current protection for even the smallest cabinet
Features
  • Ten individually fused outputs each with status LED
  • Compact size 75 x 55 x 55mm with double deck terminal
  • DIN rail mounting
  • Re-settable PPTC fuses
dividing line

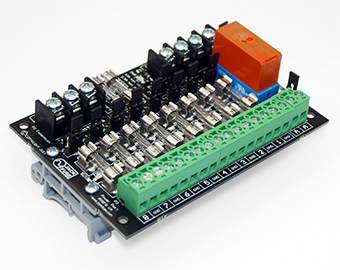

Power Port 8FR

The Power Port 8FR is an expandable module designed to provide protected power distribution for building electronic access control and security devices.

In addition the PP8FR also interfaces electronic access control devices to a buildings fire detection and emergency evacuation system.

Applications
  • Power distribution for electronic access control and security devices
  • Fused over current protection
  • Automated fire alarm emergency release of electric door locks
  • Fire trip alarm monitoring
Features
  • Eight individually fused outputs each with status LED
  • Field replaceable fire trip relay
  • Individually field selectable power outputs – fire power or standard power
  • On board spare fuse holders
  • Wide range of operating voltages
  • Unlimited local and remote expansion options
  • Fire relay status output with on board customisable EOL resistors, or
  • N/C output for failsafe fire trip connection to extra modules or other equipment
  • Drive fire relay directly from FIP voltage or onboard voltage via N/C FIP contact
  • Unfused auxiliary output for expansion (see module PP4F)
  • Drastically reduced material list, cost and install time compared to traditional methods
dividing line

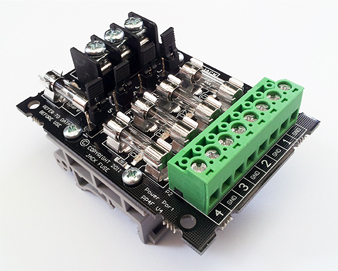

Power Port 4F – DISCONTINUED

The PP4F is a direct expansion board for the PP8FR adding four more outputs. The PP4F can also be used as a standalone fuse module and interfaced to new or existing equipment.

Perfect size for security instalations, two fuses for PIRs, one for keypad/expander power and one for siren/strobe.

Applications
  • Direct expansion for PP8FR, fire and standard power or
  • Stand alone module for use with separate fire trip interface or
  • Stand alone module for use with power supply for protected power distribution
Features
  • 4 individually fused outputs with status LED
  • Individually field selectable power outputs – fire power or standard power
  • On board spare fuse
  • Drastically reduced material list, cost and install time compared to traditional methods
dividing line

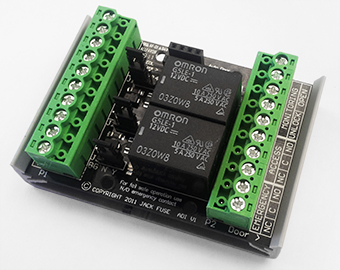

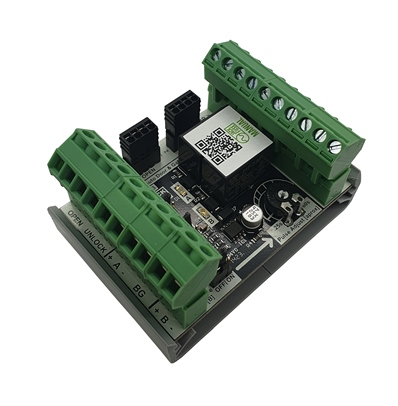

Auto Door Interface – ADI

The ADI provides a simple all in one method of connecting access control and emergency signals to any automatic door.

By implementing a clear division between the different services connecting to an auto door the ADI eliminates the grey area of who is responsible for what that so often causes costly delays in install and break down situations.

Applications
  • Automatic sliding or swing doors
  • Speed styles and gates
  • Most modern and older style auto doors
Features
  • Simplified connection of door alarms, fit EOL resistors on board and monitor two alarms from the door
  • Access control and fire/emergency interface relays with 12 or 24V DC operation
  • Fail safe emergency break glass connection
  • LEDs for interface status
  • High quality removable connectors
dividing line

About Jack Fuse

Jack Fuse develops products in response to the lack of structured power distribution and termination solutions in the electronic access control and security industries.

Jack Fuse & The Environment

Jack Fuse strives for sustainability. To that end we use renewed and renewable resources whenever possible.
We are also able to re-cycle all Jack Fuse products.

Jack Fuse actively encourages its suppliers to provide a more sustainable product by using recyclable packaging. We also ask our customers to use only e-mail correspondence to avoid paper waste. We recommend you take this stance with all company dealings.

History

Jack Fuse products were originally sold under the name Ramseon Technology. The name was changed to
Jack Fuse in Q3 2011.

Made In Australia

All products are designed and manufactured here in Australia from local and imported components.
Jack Fuse operates out of Canberra, Australia.

Suppliers

The Power Port range of fuse and fire trip modules are now available from
